Good as it is to inherit a library, it is better to collect one.

Augustine Birrell

This chapter shows you how to bundle related PL/SQL programming constructs into a package. The packaged constructs might include a collection of procedures or a pool of type definitions and variable declarations. For example, a Human Resources package might contain hiring and firing procedures. Once written, your general-purpose package is compiled, then stored in an Oracle database, where, like a library unit, its contents can be shared by many applications.

What Is a Package?

A package is a database object that groups logically related PL/SQL types, objects, and subprograms. Packages usually have two parts, a specification and a body, although sometimes the body is unnecessary. The specification is the interface to your applications; it declares the types, variables, constants, exceptions, cursors, and subprograms available for use. The body fully defines cursors and subprograms, and so implements the specification.

Unlike subprograms, packages cannot be called, parameterized, or nested. Still, the format of a package is similar to that of a subprogram:

CREATE PACKAGE name AS  -- specification (visible part)
   -- public type and object declarations
   -- subprogram specifications
END [name];

CREATE PACKAGE BODY name AS  -- body (hidden part)
   -- private type and object declarations
   -- subprogram bodies
[BEGIN
   -- initialization statements]
END [name];

The specification holds public declarations, which are visible to your application. The body holds implementation details and private declarations, which are hidden from your application. As Figure 8 - 1 shows, you can think of the specification as an operational interface and of the body as a "black box":

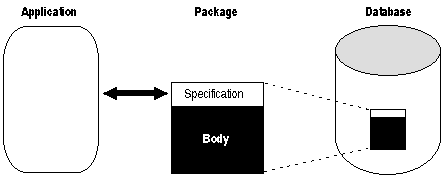

Figure 8 - 1. Package Interface

You can debug, enhance, or replace a package body without changing the interface (package specification) to the package body.

To create packages and store them permanently in an Oracle database, you use the CREATE PACKAGE and CREATE PACKAGE BODY statements, which you can execute interactively from SQL*Plus or Server Manager. For more information, see Oracle7 Server Application Developer's Guide.

In the example below, you package a record type, a cursor, and two employment procedures. Notice that the procedure hire_employee uses the database sequence empno_seq and the function SYSDATE to insert a new employee number and hire date, respectively.

CREATE PACKAGE emp_actions AS  -- specification
   TYPE EmpRecTyp IS RECORD (emp_id INTEGER, salary REAL);
   CURSOR desc_salary RETURN EmpRecTyp;
   PROCEDURE hire_employee (
      ename  VARCHAR2,
      job    VARCHAR2,
      mgr    NUMBER,
      sal    NUMBER,
      comm   NUMBER,
      deptno NUMBER);
   PROCEDURE fire_employee (emp_id NUMBER);
END emp_actions;

CREATE PACKAGE BODY emp_actions AS  -- body
   CURSOR desc_salary RETURN EmpRecTyp IS
      SELECT empno, sal FROM emp ORDER BY sal DESC;
   PROCEDURE hire_employee (
      ename  VARCHAR2,
      job    VARCHAR2,
      mgr    NUMBER,
      sal    NUMBER,
      comm   NUMBER,
      deptno NUMBER) IS
   BEGIN
      INSERT INTO emp VALUES (empno_seq.NEXTVAL, ename, job,
         mgr, SYSDATE, sal, comm, deptno);
   END hire_employee;
   PROCEDURE fire_employee (emp_id NUMBER) IS
   BEGIN
      DELETE FROM emp WHERE empno = emp_id;
   END fire_employee;
END emp_actions;

Only the declarations in the package specification are visible and accessible to applications. Implementation details in the package body are hidden and inaccessible. So, you can change the body (implementation) without having to recompile calling programs.

Advantages of Packages

Packages offer several advantages: modularity, easier application design, information hiding, added functionality, and better performance.

Modularity

Packages let you encapsulate logically related types, objects, and subprograms in a named PL/SQL module. Each package is easy to understand, and the interfaces between packages are simple, clear, and well defined. This aids application development.

Easier Application Design

When designing an application, all you need initially is the interface information in the package specifications. You can code and compile a specification without its body. Once the specification has been compiled, stored subprograms that reference the package can be compiled as well. You need not define the package bodies fully until you are ready to complete the application.

Information Hiding

With packages, you can specify which types, objects, and subprograms are public (visible and accessible) or private (hidden and inaccessible). For example, if a package contains four subprograms, three might be public and one private. The package hides the definition of the private subprogram so that only the package (not your application) is affected if the definition changes. This simplifies maintenance and enhancement. Also, by hiding implementation details from users, you protect the integrity of the package.

Added Functionality

Packaged public variables and cursors persist for the duration of a session. So, they can be shared by all subprograms that execute in the environment. Also, they allow you to maintain data across transactions without having to store it in the database.

Better Performance

When you call a packaged subprogram for the first time, the whole package is loaded into memory. Therefore, subsequent calls to related subprograms in the package require no disk I/O.

In addition, packages stop cascading dependencies and so avoid unnecessary recompiling. For example, if you change the definition of a standalone function, Oracle must recompile all stored subprograms that call the function. However, if you change the definition of a packaged function, Oracle need not recompile the calling subprograms because they do not depend on the package body.

The Package Specification

The package specification contains public declarations. The scope of these declarations is local to your database schema and global to the package. So, the declared objects are accessible from your application and from anywhere in the package. Figure 8 - 2 illustrates the scoping.

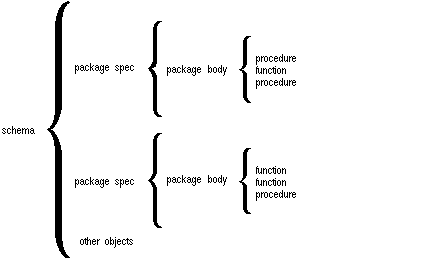

Figure 8 - 2. Package Scope

The specification lists the package resources available to applications. All the information your application needs to use the resources is in the specification. For example, the following declaration shows that the function named fac takes one argument of type INTEGER and returns a value of type INTEGER:

FUNCTION fac (n INTEGER) RETURN INTEGER;  -- returns n!

That is all the information you need to call the function. You need not consider the underlying implementation of fac (whether it is iterative or recursive, for example).

Only subprograms and cursors have an underlying implementation or definition. So, if a specification declares only types, constants, variables, and exceptions, the package body is unnecessary. Consider the following bodiless package:

-- a bodiless package
CREATE PACKAGE trans_data AS
   TYPE TimeTyp IS RECORD (
      minute SMALLINT,
      hour   SMALLINT);

   TYPE TransTyp IS RECORD (
      category VARCHAR2,
      account  INTEGER,
      amount   REAL,
      time     TimeTyp);
   minimum_balance    CONSTANT REAL := 10.00;
   number_processed   INTEGER;
   insufficient_funds EXCEPTION;
END trans_data;

The package trans_data needs no body because types, constants, variables, and exceptions do not have an underlying implementation. Such packages let you define global variables--usable by subprograms and database triggers--that persist throughout a session.

Referencing Package Contents

To reference the types, objects, and subprograms declared within a package specification, you use dot notation, as follows:

package_name.type_name
package_name.object_name
package_name.subprogram_name

You can reference package contents from a database trigger, a stored subprogram, an Oracle Precompiler application, an OCI application, or an Oracle tool such as SQL*Plus. For example, you might call the packaged procedure hire_employee from SQL*Plus, as follows:

SQL> EXECUTE emp.actions.hire_employee('TATE', 'CLERK', ...);

In the following example, you call the same procedure from an anonymous PL/SQL block embedded in a Pro*C program:

EXEC SQL EXECUTE
   BEGIN
      emp_actions.hire_employee(:name, :title, ...);
   END;
END-EXEC;

The actual parameters name and title are host variables.

Restriction

You cannot reference remote packaged variables directly or indirectly. For example, you cannot call the following procedure remotely because it references a packaged variable in a parameter initialization clause:

CREATE PACKAGE random AS
   seed NUMBER;
   PROCEDURE initialize (starter IN NUMBER := seed, ...);
   ...
END random;

The Package Body

The package body implements the package specification. That is, the package body contains the definition of every cursor and subprogram declared in the package specification. Keep in mind that subprograms defined in a package body are accessible outside the package only if their specifications also appear in the package specification.

To match subprogram specifications and bodies, PL/SQL does a token-by-token comparison of their headers. So, except for white space, the headers must match word for word. Otherwise, PL/SQL raises an exception, as the following example shows:

CREATE PACKAGE emp_actions AS
   ...
   PROCEDURE calc_bonus (date_hired emp.hiredate%TYPE, ...);
END emp_actions;

CREATE PACKAGE BODY emp_actions AS
   ...
   PROCEDURE calc_bunus (date_hired DATE, ...) IS
      -- parameter declaration raises an exception because 'DATE'
      -- does not match 'emp.hiredate%TYPE' word for word
   BEGIN
      ...
   END calc_bonus;
END emp_actions;

The package body can also contain private declarations, which define types and objects necessary for the internal workings of the package. The scope of these declarations is local to the package body. Therefore, the declared types and objects are inaccessible except from within the package body. Unlike a package specification, the declarative part of a package body can contain subprogram bodies.

Following the declarative part of a package body is the optional initialization part, which typically holds statements that initialize some of the variables previously declared in the package.

The initialization part of a package plays a minor role because, unlike subprograms, a package cannot be called or passed parameters. As a result, the initialization part of a package is run only once, the first time you reference the package.

Recall that if a specification declares only types, constants, variables, and exceptions, the package body is unnecessary. However, the body can still be used to initialize objects declared in the specification.

Some Examples

Consider the package below named emp_actions. The package specification declares the following types, objects, and subprograms:

types EmpRecTyp and DeptRecTyp

cursor desc_salary

exception salary_missing

functions hire_employee, nth_highest_salary, and rank

procedures fire_employee and raise_salary

After writing the package, you can develop applications that reference its types, call its subprograms, use its cursor, and raise its exception. When you create the package, it is stored in an Oracle database for general use.

CREATE PACKAGE emp_actions AS
   /* Declare externally visible types, cursor, exception. */
   TYPE EmpRecTyp IS RECORD (emp_id INTEGER, salary REAL);
   TYPE DeptRecTyp IS RECORD (dept_id INTEGER, location VARCHAR2);
   CURSOR desc_salary RETURN EmpRecTyp;
   salary_missing EXCEPTION;

   /* Declare externally callable subprograms. */
   FUNCTION hire_employee (
      ename  VARCHAR2,
      job    VARCHAR2,
      mgr    NUMBER,
      sal    NUMBER,
      comm   NUMBER,
      deptno NUMBER) RETURN INTEGER;
   PROCEDURE fire_employee (emp_id INTEGER);
   PROCEDURE raise_salary (emp_id INTEGER, increase NUMBER);
   FUNCTION nth_highest_salary (n INTEGER) RETURN EmpRecTyp;
END emp_actions;

CREATE PACKAGE BODY emp_actions AS
   number_hired  INTEGER;  -- visible only in this package

   /* Fully define cursor specified in package. */
   CURSOR desc_salary RETURN EmpRecTyp IS
      SELECT empno, sal FROM emp ORDER BY sal DESC;

   /* Fully define subprograms specified in package. */
   FUNCTION hire_employee (
      ename  VARCHAR2,
      job    VARCHAR2,
      mgr    NUMBER,
      sal    NUMBER,
      comm   NUMBER,
      deptno NUMBER) RETURN INTEGER IS
      new_empno  INTEGER;
   BEGIN
      SELECT empno_seq.NEXTVAL INTO new_empno FROM dual;
      INSERT INTO emp VALUES (new_empno, ename, job,
         mgr, SYSDATE, sal, comm, deptno);
      number_hired := number_hired + 1;
      RETURN new_empno;
   END hire_employee;

   PROCEDURE fire_employee (emp_id INTEGER) IS
   BEGIN
      DELETE FROM emp WHERE empno = emp_id;
   END fire_employee;

   PROCEDURE raise_salary (emp_id INTEGER, increase NUMBER) IS
      current_salary NUMBER;
   BEGIN
      SELECT sal INTO current_salary FROM emp
         WHERE empno = emp_id;
      IF current_salary IS NULL THEN
         RAISE salary_missing;
      ELSE
         UPDATE emp SET sal = sal + increase
            WHERE empno = emp_id;
      END IF;
   END raise_salary;

   FUNCTION nth_highest_salary (n INTEGER) RETURN EmpRecTyp IS
      emp_rec  EmpRecTyp;
   BEGIN
      OPEN desc_salary;
      FOR i IN 1..n LOOP
         FETCH desc_salary INTO emp_rec;
      END LOOP;
      CLOSE desc_salary;
      RETURN emp_rec;
   END nth_highest_salary;

   /* Define local function, available only in package. */
   FUNCTION rank (emp_id INTEGER, job_title VARCHAR2)
      RETURN INTEGER IS
   /* Return rank (highest = 1) of employee in a given
      job classification based on performance rating. */
      head_count INTEGER;
      score      NUMBER;
   BEGIN
      SELECT COUNT(*) INTO head_count FROM emp
         WHERE job = job_title;
      SELECT rating INTO score FROM reviews
         WHERE empno = emp_id;
      score := score / 100;  -- maximum score is 100
      RETURN (head_count + 1) - ROUND(head_count * score);
   END rank;

BEGIN  -- initialization part starts here
   INSERT INTO emp_audit VALUES (SYSDATE, USER, 'EMP_ACTIONS');
   number_hired := 0;
END emp_actions;

Remember, the initialization part of a package is run just once, the first time you reference the package. So, in the last example, only one row is inserted into the database table emp_audit. Likewise, the variable number_hired is initialized only once.

Every time the procedure hire_employee is called, the variable number_hired is updated. However, the count kept by number_hired is session specific. That is, the count reflects the number of new employees processed by one user, not the number processed by all users.

In the next example, you package some typical bank transactions. Assume that debit and credit transactions are entered after business hours via automatic teller machines, then applied to accounts the next morning.

CREATE PACKAGE bank_transactions AS
   /* Declare externally visible constant. */
   minimum_balance  CONSTANT NUMBER := 100.00;

   /* Declare externally callable procedures. */
   PROCEDURE apply_transactions;
   PROCEDURE enter_transaction (
      acct   NUMBER,
      kind   CHAR,
      amount NUMBER);
END bank_transactions;

CREATE PACKAGE BODY bank_transactions AS
   /* Declare global variable to hold transaction status. */
   new_status  VARCHAR2(70) := 'Unknown';

   /* Use forward declarations because apply_transactions
      calls credit_account and debit_account, which are not
      yet declared when the calls are made. */
   PROCEDURE credit_account (acct NUMBER, credit REAL);
   PROCEDURE debit_account (acct NUMBER, debit REAL);

   /* Fully define procedures specified in package. */
   PROCEDURE apply_transactions IS
   /* Apply pending transactions in transactions table
      to accounts table. Use cursor to fetch rows. */
      CURSOR trans_cursor IS
         SELECT acct_id, kind, amount FROM transactions
            WHERE status = 'Pending'
            ORDER BY time_tag
            FOR UPDATE OF status;  -- to lock rows
   BEGIN
      FOR trans IN trans_cursor LOOP
         IF trans.kind = 'D' THEN
            debit_account(trans.acct_id, trans.amount);
         ELSIF trans.kind = 'C' THEN
            credit_account(trans.acct_id, trans.amount);
         ELSE
            new_status := 'Rejected';
         END IF;
         UPDATE transactions SET status = new_status
            WHERE CURRENT OF trans_cursor;
      END LOOP;
   END apply_transactions;

   PROCEDURE enter_transaction (
   /* Add a transaction to transactions table. */
      acct   NUMBER,
      kind   CHAR,
      amount NUMBER) IS
   BEGIN
      INSERT INTO transactions
         VALUES (acct, kind, amount, 'Pending', SYSDATE);
   END enter_transaction;

   /* Define local procedures, available only in package. */
   PROCEDURE do_journal_entry (
   /* Record transaction in journal. */
      acct    NUMBER,
      kind    CHAR,
      new_bal NUMBER) IS
   BEGIN
      INSERT INTO journal
         VALUES (acct, kind, new_bal, sysdate);
      IF kind = 'D' THEN
         new_status := 'Debit applied';
      ELSE
         new_status := 'Credit applied';
      END IF;
   END do_journal_entry;

   PROCEDURE credit_account (acct NUMBER, credit REAL) IS
   /* Credit account unless account number is bad. */
      old_balance NUMBER;
      new_balance NUMBER;
   BEGIN
      SELECT balance INTO old_balance FROM accounts
         WHERE acct_id = acct
         FOR UPDATE OF balance;  -- to lock the row
      new_balance := old_balance + credit;
      UPDATE accounts SET balance = new_balance
         WHERE acct_id = acct;
      do_journal_entry(acct, 'C', new_balance);
   EXCEPTION
      WHEN NO_DATA_FOUND THEN
         new_status := 'Bad account number';
      WHEN OTHERS THEN
         new_status := SUBSTR(SQLERRM,1,70);
   END credit_account;

   PROCEDURE debit_account (acct NUMBER, debit REAL) IS
   /* Debit account unless account number is bad or
      account has insufficient funds. */
      old_balance        NUMBER;
      new_balance        NUMBER;
      insufficient_funds EXCEPTION;
   BEGIN
      SELECT balance INTO old_balance FROM accounts
         WHERE acct_id = acct
         FOR UPDATE OF balance;  -- to lock the row
      new_balance := old_balance - debit;
      IF new_balance >= minimum_balance THEN
         UPDATE accounts SET balance = new_balance
            WHERE acct_id = acct;
         do_journal_entry(acct, 'D', new_balance);
      ELSE
         RAISE insufficient_funds;
      END IF;
   EXCEPTION
      WHEN NO_DATA_FOUND THEN
         new_status := 'Bad account number';
      WHEN insufficient_funds THEN
         new_status := 'Insufficient funds';
      WHEN OTHERS THEN
         new_status := SUBSTR(SQLERRM,1,70);
   END debit_account;
END bank_transactions;

In this package, the initialization part is not used.

Private versus Public Objects

Look again at the package emp_actions. The package body declares a variable named number_hired, which is initialized to zero. Unlike items declared in the specification of emp_actions, items declared in the body are restricted to use within the package. Therefore, PL/SQL code outside the package cannot reference the variable number_hired. Such items are termed private.

However, items declared in the specification of emp_actions such as the exception salary_missing are visible outside the package. Therefore, any PL/SQL code can reference the exception salary_missing. Such items are termed public.

When you must maintain items throughout a session or across transactions, place them in the declarative part of the package body. For example, the value of number_hired is retained between calls to hire_employee. Remember, however, that the value of number_hired is session specific.

If you must also make the items public, place them in the package specification. For example, the constant minimum_balance declared in the specification of the package bank_transactions is available for general use.

Note: When you call a packaged subprogram remotely, the whole package is reinstantiated and its previous state is lost.

Overloading

Recall from Chapter 7 that PL/SQL allows two or more packaged subprograms to have the same name. This option is useful when you want a subprogram to accept parameters that have different datatypes. For example, the following package defines two procedures named journalize:

CREATE PACKAGE journal_entries AS
   PROCEDURE journalize (amount NUMBER, trans_date VARCHAR2);
   PROCEDURE journalize (amount NUMBER, trans_date NUMBER );
END journal_entries;

CREATE PACKAGE BODY journal_entries AS
   PROCEDURE journalize (amount NUMBER, trans_date VARCHAR2) IS
   BEGIN
      INSERT INTO journal
         VALUES (amount, TO_DATE(trans_date, 'DD-MON-YYYY'));
   END journalize;

   PROCEDURE journalize (amount NUMBER, trans_date NUMBER) IS
   BEGIN
      INSERT INTO journal
         VALUES (amount, TO_DATE(trans_date, 'J'));
   END journalize;
END journal_entries;

The first procedure accepts trans_date as a character string, while the second procedure accepts it as a number (the Julian day). Yet, each procedure handles the data appropriately.

Package STANDARD

A package named STANDARD defines the PL/SQL environment. The package specification globally declares types, exceptions, and subprograms, which are available automatically to every PL/SQL program. For example, package STANDARD declares the following built-in function named ABS, which returns the absolute value of its argument:

FUNCTION ABS (n NUMBER) RETURN NUMBER;

The contents of package STANDARD are directly visible to applications. So, you can call ABS from a database trigger, a stored subprogram, an Oracle Precompiler application, an OCI application, and various Oracle tools including Oracle Forms, Oracle Reports, and SQL*Plus.

If you redeclare ABS in a PL/SQL program, your local declaration overrides the global declaration. However, you can still call the built-in function by using dot notation, as follows:

... STANDARD.ABS(x) ...

Most built-in functions are overloaded. For example, package STANDARD contains the following declarations:

FUNCTION TO_CHAR (right DATE) RETURN VARCHAR2;
FUNCTION TO_CHAR (left NUMBER) RETURN VARCHAR2;
FUNCTION TO_CHAR (left DATE, right VARCHAR2) RETURN VARCHAR2;
FUNCTION TO_CHAR (left NUMBER, right VARCHAR2) RETURN VARCHAR2;

PL/SQL resolves a call to TO_CHAR by matching the number and datatypes of the formal and actual parameters.

Product-specific Packages

Oracle7 and various Oracle tools are supplied with product-specific packages that help you build PL/SQL-based applications. For example, Oracle7 is supplied with the packages DBMS_STANDARD, DBMS_SQL, DBMS_ALERT, DBMS_OUTPUT, DBMS_PIPE, UTL_FILE, and others. Brief descriptions of these packages follow; for more information, see Oracle7 Server Application Developer's Guide.

DBMS_STANDARD

Package DBMS_STANDARD provides language facilities that help your application interact with Oracle. For instance, a procedure named raise_application_error lets you issue user-defined error messages. That way, you can report errors to an application and avoid returning unhandled exceptions. For an example, see "Using raise_application_ error"

DBMS_SQL

Package DBMS_SQL allows PL/SQL to execute SQL data definition and data manipulation statements dynamically at run time. For an example, see "Using DDL and Dynamic SQL"

DBMS_ALERT

Package DBMS_ALERT lets you use database triggers to alert an application when specific database values change. The alerts are transaction based and asynchronous (that is, they operate independently of any timing mechanism). For example, a company might use this package to update the value of its investment portfolio as new stock and bond quotes arrive.

DBMS_OUTPUT

Package DBMS_OUTPUT enables you to display output from PL/SQL blocks and subprograms, which makes it easier to test and debug them. The put_line procedure outputs information to a buffer in the SGA. You display the information by calling the procedure get_line or by using the command SET SERVEROUTPUT ON in SQL*Plus or Server Manager. For an example, see "Displaying Output"

DBMS_PIPE

Package DBMS_PIPE allows different sessions to communicate over named pipes. (A pipe is an area of memory used by one process to pass information to another.) You can use the procedures pack_message and send_message to pack a message into a pipe, then send it to another session in the same instance.

At the other end of the pipe, you can use the procedures receive_message and unpack_message to receive and unpack (read) the message. Named pipes are useful in many ways. For example, you can write routines in C that allow external servers to collect information, then send it through pipes to procedures stored in an Oracle database.

UTL_FILE

Package UTL_FILE allows your PL/SQL programs to read and write operating system (OS) text files. It provides a restricted version of standard OS stream file I/O, including open, put, get, and close operations.

When you want to read or write a text file, you call the function fopen, which returns a file handle for use in subsequent procedure calls. For example, the procedure put_line writes a text string and line terminator to an open file. The procedure get_line reads a line of text from an open file into an output buffer.

PL/SQL file I/O is available on both the client and server sides. However, on the server side, file access is restricted to those directories explicitly listed in the accessible directories list, which is stored in the Oracle initialization file.

Guidelines

When writing packages, keep them as general as possible so they can be reused in future applications. Avoid writing packages that duplicate some feature already provided by Oracle.

Package specifications reflect the design of your application. So, define them before the package bodies. Place in a specification only the types, objects, and subprograms that must be visible to users of the package. That way, other developers cannot misuse the package by basing their code on irrelevant implementation details.

To reduce the need for recompiling when code is changed, place as few items as possible in a package specification. Changes to a package body do not require Oracle to recompile dependent procedures. However, changes to a package specification require Oracle to recompile every stored subprogram that references the package.

Prev Next

Library

Product

Contents

Index
